Products
MCC Panel
Motor

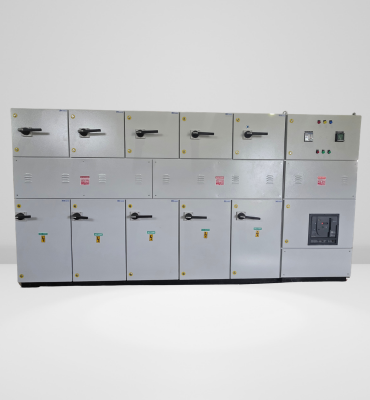

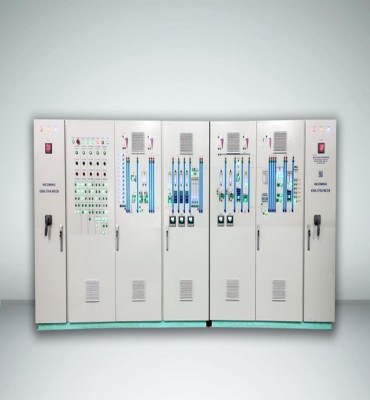

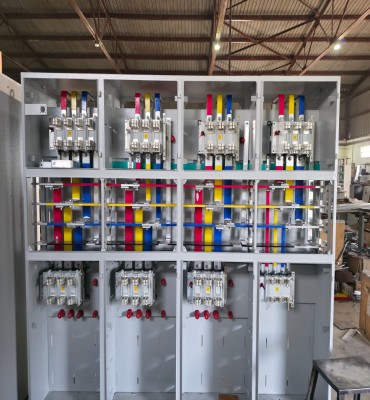

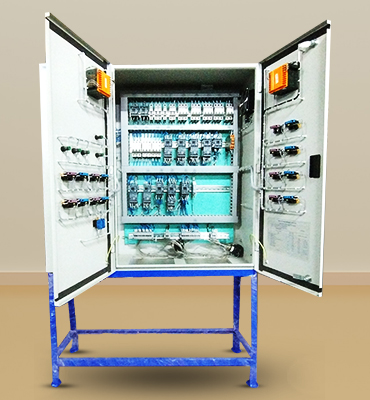

Control Center (MCC) Panels
Shri Vishnu Engineering designs and
manufactures robust MCC panels that serve as the centralized hub for
controlling, protecting, and monitoring electric motors. Engineered to IS 8623
standards with current ratings up to 6300A.
Key Features: Fully compartmentalized
front-access design, DOL/Star-Delta/Auto Transformer starters, thermal overload
relays + MCCBs + HRC fuses, bus bar up to 6300A, powder-coated CRCA enclosures
IP42-IP55.
Specs: IS 8623 / IEC 61439 | Up to 690V AC
| Bus Bar up to 6300A | CRCA IP42-IP55
Components: Siemens, Schneider Electric,
ABB, L&T, Havells, Crompton

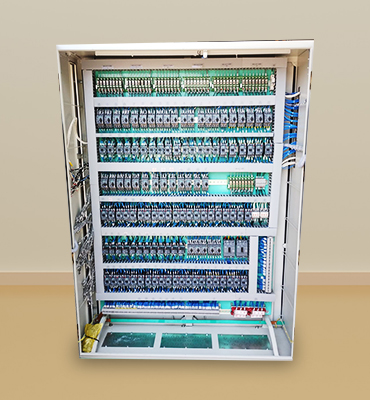

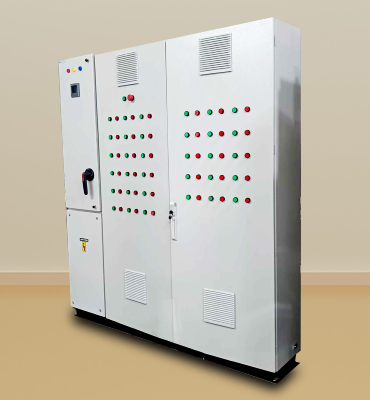

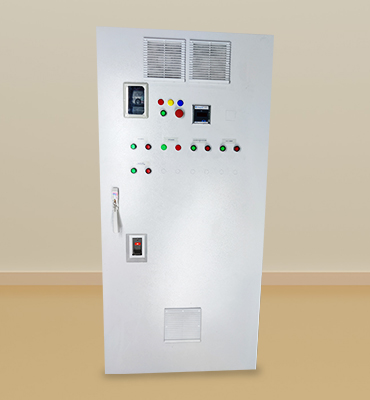

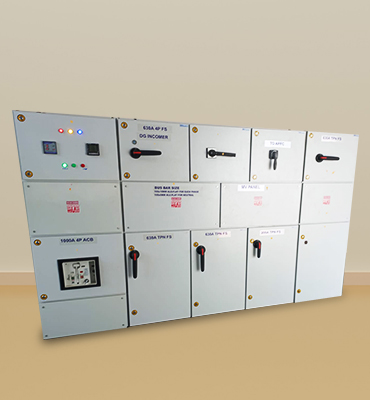

PLC Automation Panels
PLC
Automation Panels
Our PLC-based automation panels combine
advanced PLC technology with industrial-grade components for intelligent
monitoring, control, and automation. We work with Mitsubishi, Siemens, and
Allen Bradley platforms.
Key Features: PLC programming (Mitsubishi
FX/Q, Siemens S7-1200/1500, Allen Bradley), SCADA integration, HMI touch panels
7"-15", Modbus/Profibus/Profinet/Ethernet/IP, remote IoT monitoring.
Specs: 415V AC / 24V DC Control | I/O: 16
to 1024+ | IP42-IP55
Components: Mitsubishi Electric, Siemens,
Allen Bradley, Delta, Omron, Schneider

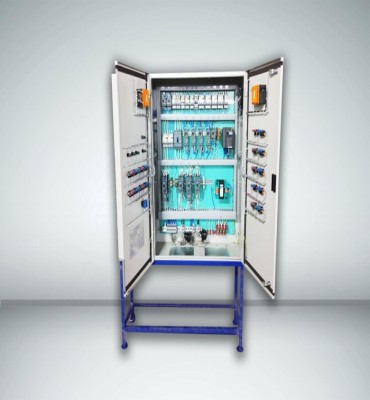

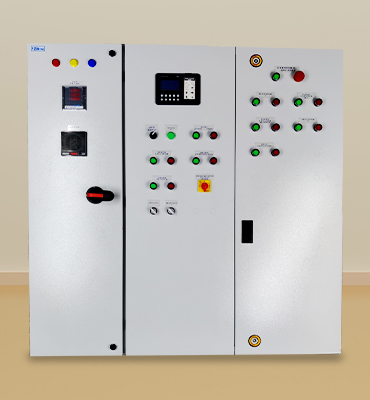

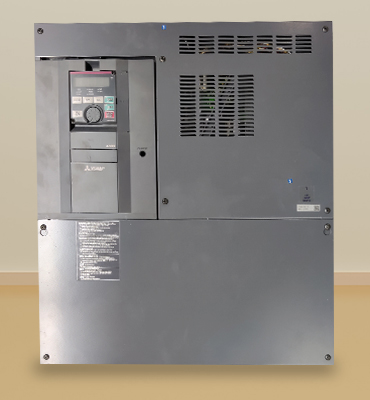

VFD Drive Panels
VFD Drive
Panels
High-performance VFD panels for precise
motor speed and torque control. Power ratings from 0.37kW to 500kW with drives
from ABB, Siemens, Danfoss, and Mitsubishi.
Key Features: 0.37kW-500kW range, line
reactors & harmonic filters, auto/manual bypass, dynamic braking resistors,
multi-motor control, 20-40% energy savings.
Specs: 415V AC 3-Phase | IP42-IP55 | Bypass
+ Harmonic Filter + Braking
Components: ABB, Siemens, Danfoss,
Mitsubishi, Yaskawa, Schneider

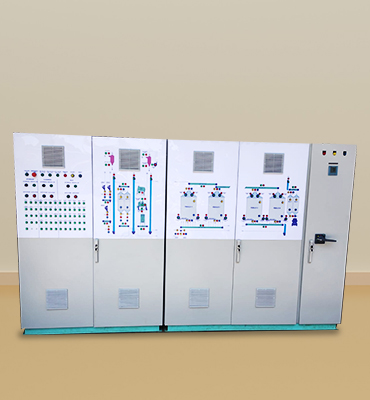

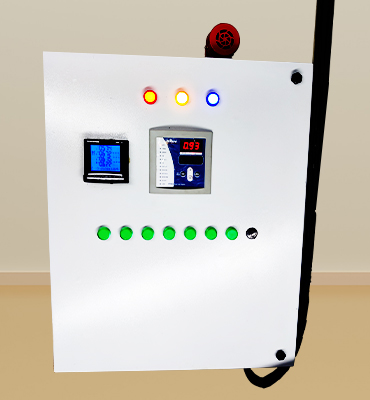

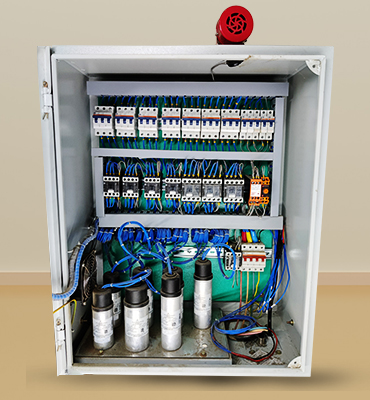

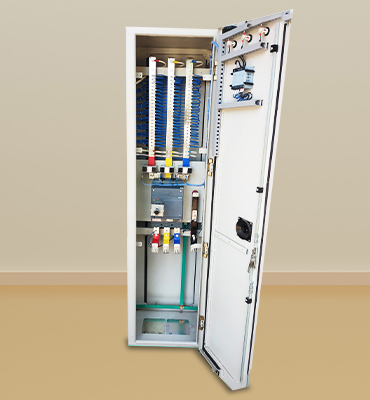

Automatic Power Factor Correction (APFC) Panels
Automatic Power Factor Correction (APFC) Panels
APFC panels automatically maintain optimal power factor, reducing electricity bills and avoiding utility penalties. Contactor-switched and thyristor-switched variants, 25 KVAR to 1000 KVAR.
Key Features: Auto PF correction to 0.99, contactor/thyristor switching, 4-12 stage APFC relay, detuned reactors for harmonics, real-time kVAR/PF/kWh monitoring.
Specs: IS 13340 / IEC 61439 | 415V AC | 25-1000 KVAR | Target PF 0.99
Components: Epcos (TDK), L&T, Schneider, Siemens, Selec, Mikro

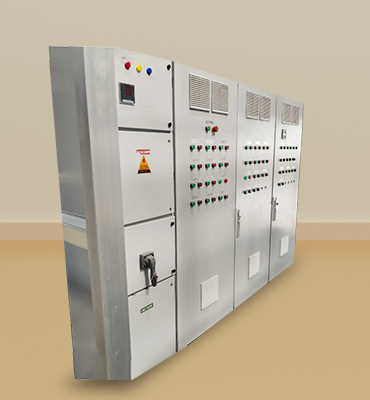

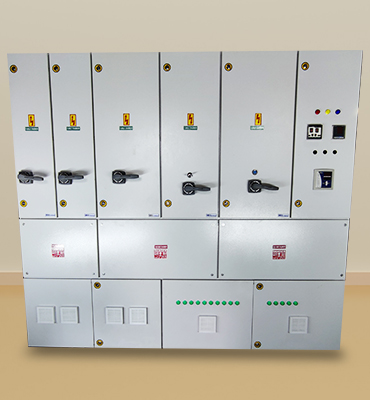

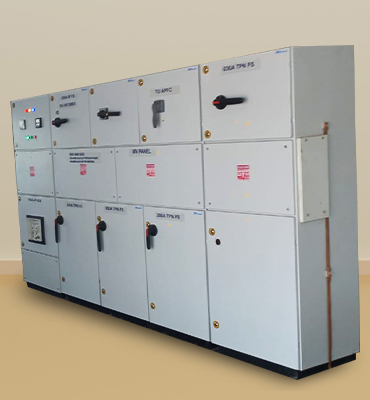

Medium Voltage (MV) Panels
Medium
Voltage (MV) Panels
MV switchgear panels for 3.3kV to 11kV with
Vacuum Circuit Breakers (VCB) and numerical protection relays. Designed to IS
3427 and IEC 62271 standards.
Key Features: 3.3kV-11kV ratings, VCB with
motorized operation, numerical relays (overcurrent/earth fault/differential),
CT/PT metering, draw-out VCB trolley.
Specs: IS 3427 / IEC 62271 | Up to 2500A
bus bar | 25kA/1sec fault level
Components: Siemens, ABB, Schneider
Electric, L&T, CGL

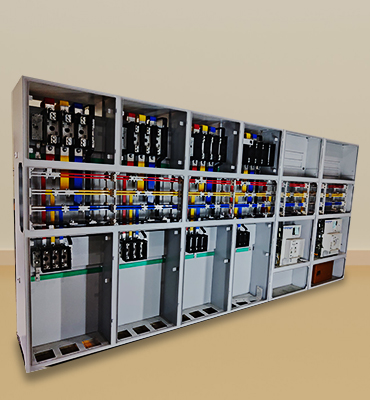

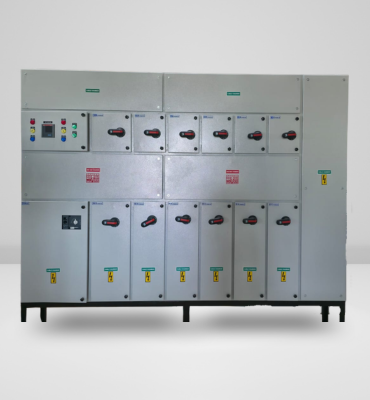

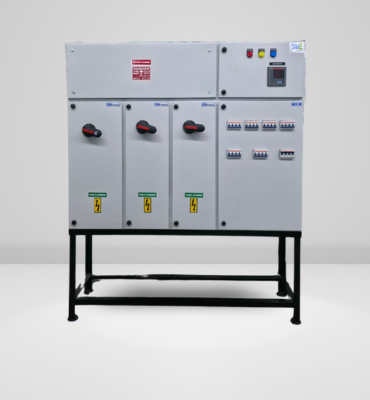

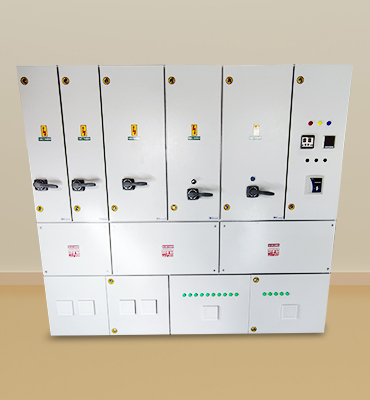

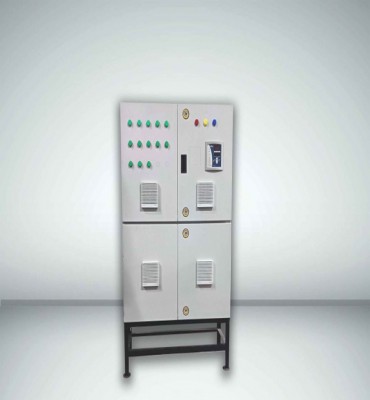

Sub Switch Board (SSB) Panels
Sub Switch
Board (SSB) Panels
Efficient power distribution from main
distribution boards to sub-circuits. ACB/MCCB incoming, MCCB/MCB outgoing
feeders, rated up to 4000A.
Key Features: ACB/MCCB incoming, bus bar up
to 4000A, digital multifunction meters, surge protection (SPD), Form 2/3/4
segregation, modular expandable design.
Specs: IS 8623 / IEC 61439 | 415V AC |
ACB/MCCB up to 4000A | IP42-IP55
Components: Siemens, Schneider, ABB,
L&T, Havells, Elmeasure

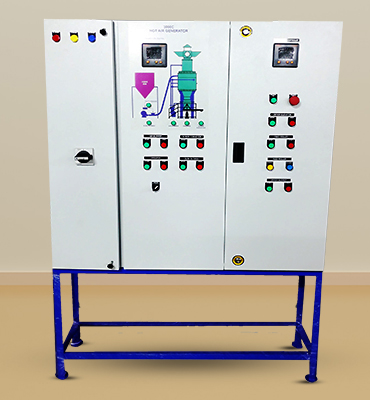

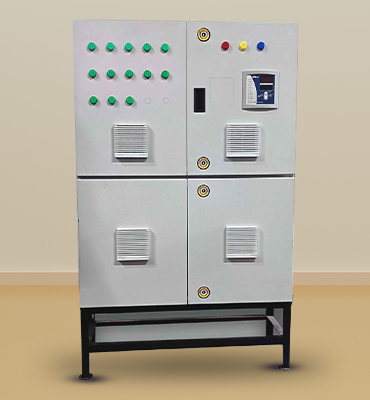

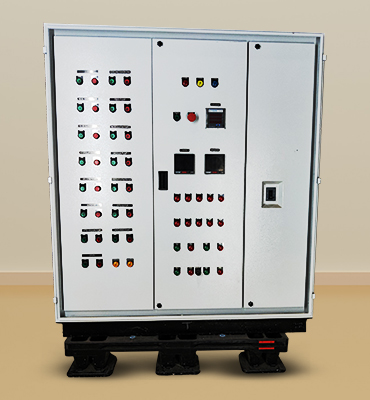

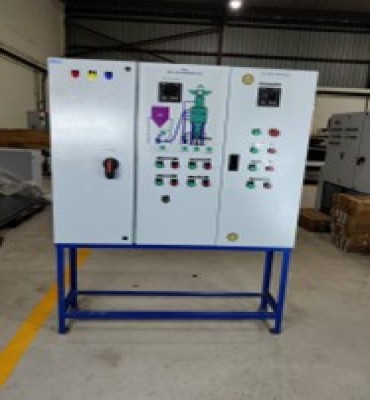

Industrial Dryer Control Panels
Industrial
Dryer Control Panels
Comprehensive dryer control solutions with
PLC-based automation for precise temperature and humidity control. Partnership
with Milltec Machinery for turn-key dryer systems.
Key Features: PLC-based temp/humidity
control, RTD/thermocouple multi-zone monitoring, burner management with safety
interlocks, HMI with trend graphs, VFD-controlled blowers.
Specs: PLC + HMI | RTD PT100 / K-type TC |
0-100% RH | Modbus RTU/TCP
Components: Mitsubishi, Siemens, Danfoss,
Selec, Autonics, Omron

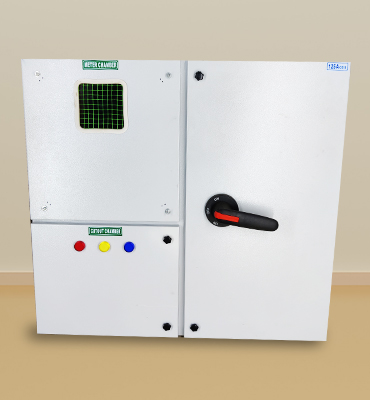

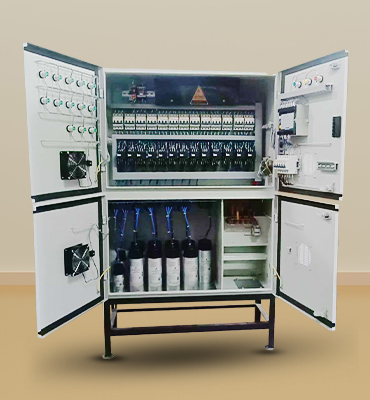

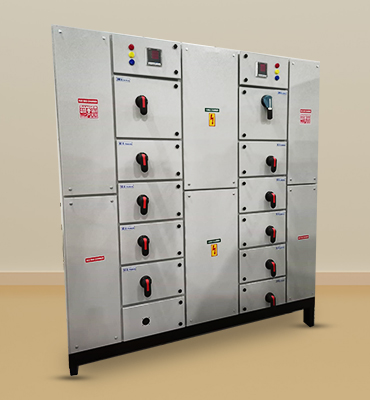

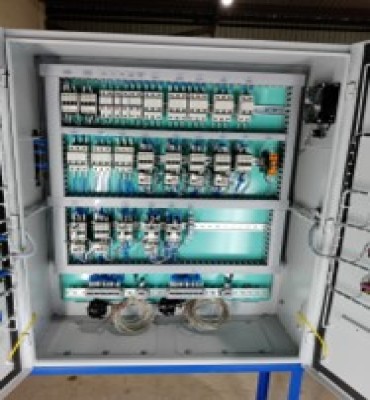

Custom-Engineered Panels
Custom-Engineered
Panels
Fully custom solutions: relay logic panels,
DG synchronization, AMF panels, ATSS panels, lighting distribution boards,
furnace control panels — tailored to your exact specifications.
Custom Range: Relay Logic, DG Sync, AMF,
ATSS, LDB, Furnace, Feeder Pillar, Power Distribution Boards.
Process: 1) Requirement Analysis 2) Design
& Engineering 3) Manufacturing 4) Testing & Commissioning
Components: Siemens, Schneider, ABB,
L&T, Mitsubishi, Omron, Havells
